A C64 Game - Step 35

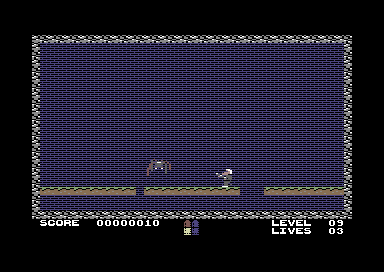

And onwards we go. Enemies now get an annoyed state once they got hit. For some enemies annoyance is even increasing. And to top it off, a new jumping spider enemy was added.



Adding the new enemy follows the common pattern we've seen in earlier steps.

Add new constants:

SPRITE_SPIDER_STAND = SPRITE_BASE + 44
SPRITE_SPIDER_WALK_1 = SPRITE_BASE + 45
SPRITE_SPIDER_WALK_2 = SPRITE_BASE + 46

TYPE_SPIDER = 8

Add the behaviour code:

;------------------------------------------------------------
;run left/right, jump off directional
;------------------------------------------------------------
!zone BehaviourSpider
BehaviourSpider
          ;animate spider
          inc SPRITE_ANIM_DELAY,x
          lda SPRITE_ANIM_DELAY,x
          cmp #2
          bne .NoAnimUpdate

          lda #0
          sta SPRITE_ANIM_DELAY,x
          inc SPRITE_ANIM_POS,x
          lda SPRITE_ANIM_POS,x
          and #$3
          sta SPRITE_ANIM_POS,x
          tay
          lda SPIDER_ANIMATION_TABLE,y
          sta SPRITE_POINTER_BASE,x

.NoAnimUpdate
          lda SPRITE_JUMP_POS,x
          bne .NoFallHandling
          jsr UpdateSpriteFall
          sta SPRITE_FALLING,x

.NoFallHandling
          lda #3
          sta PARAM6

.MoveStep
          dec PARAM6
          beq .MoveDone
          lda SPRITE_DIRECTION,x
          beq .MoveRight

          ;move left
          lda SPRITE_JUMP_POS,x
          ora SPRITE_FALLING,x
          bne .OnlyMoveLeft

          jsr ObjectWalkOrJumpLeft
          beq .ToggleDirection
          jmp .MoveStep

.MoveDone
          lda SPRITE_JUMP_POS,x
          beq .NotJumping
          jsr UpdateSpriteJump

.NotJumping
          rts

.OnlyMoveLeft
          jsr ObjectMoveLeftBlocking
          beq .ToggleDirection
          jmp .MoveStep

.MoveRight
          lda SPRITE_JUMP_POS,x
          ora SPRITE_FALLING,x
          bne .OnlyMoveRight

          jsr ObjectWalkOrJumpRight
          beq .ToggleDirection
          jmp .MoveStep

.OnlyMoveRight
          jsr ObjectMoveRightBlocking
          beq .ToggleDirection
          jmp .MoveStep

.ToggleDirection
          lda SPRITE_DIRECTION,x
          eor #1
          sta SPRITE_DIRECTION,x
          jmp .MoveStep

The behaviour of this spider enemy: Walk. If a gap below is encountered, jump. If the way is blocked, turn. This behaviour is put in a general subroutine, since it might come in handy for other enemies later (and it will):

;------------------------------------------------------------
;walk object left if could fall off jump if blocked turn
;x = object index
;------------------------------------------------------------
!zone ObjectWalkOrJumpLeft
ObjectWalkOrJumpLeft
          lda SPRITE_CHAR_POS_X_DELTA,x
          beq .CheckCanMoveLeft

.CanMoveLeft
          dec SPRITE_CHAR_POS_X_DELTA,x
          jsr MoveSpriteLeft
          lda #1
          rts

.CheckCanMoveLeft
          jsr CanWalkOrJumpLeft
          beq .Blocked
          cmp #1
          beq .WalkLeft

          ;jump
          lda SPRITE_JUMP_POS,x
          bne .WalkLeft

          lda #1
          sta SPRITE_JUMP_POS,x

.WalkLeft
          lda #8
          sta SPRITE_CHAR_POS_X_DELTA,x
          dec SPRITE_CHAR_POS_X,x
          jmp .CanMoveLeft

.Blocked
          rts

;------------------------------------------------------------
;checks if an object can walk or jump left (jump if would fall off)
;x = object index
;returns 0 if blocked
;returns 1 if possible
;returns 2 if jump required (not blocked, but in front of hole)
;------------------------------------------------------------
!zone CanWalkOrJumpLeft
CanWalkOrJumpLeft
          ldy SPRITE_CHAR_POS_Y,x
          dey
          lda SCREEN_LINE_OFFSET_TABLE_LO,y
          sta ZEROPAGE_POINTER_1
          lda SCREEN_BACK_LINE_OFFSET_TABLE_HI,y
          sta ZEROPAGE_POINTER_1 + 1
          ldy SPRITE_CHAR_POS_X,x
          dey
          lda (ZEROPAGE_POINTER_1),y
          jsr IsCharBlocking
          bne .BlockedLeft
          tya
          clc
          adc #40
          tay
          lda (ZEROPAGE_POINTER_1),y
          jsr IsCharBlocking
          bne .BlockedLeft

          ;is a hole in front
          ldy SPRITE_CHAR_POS_Y,x
          lda SCREEN_LINE_OFFSET_TABLE_LO,y
          sta ZEROPAGE_POINTER_1
          lda SCREEN_BACK_LINE_OFFSET_TABLE_HI,y
          sta ZEROPAGE_POINTER_1 + 1
          lda SPRITE_CHAR_POS_X,x
          clc
          adc #39
          tay
          lda (ZEROPAGE_POINTER_1),y
          jsr IsCharBlockingFall
          bne .NoHole

          lda #2
          rts

.NoHole
          lda #1
          rts

.BlockedLeft
          lda #0
          rts

To get and show annoyed behaviour a new state array SPRITE_ANNOYED is created. Enemies are supposed to change color to see once they get angry. For this we add a new color table:

TYPE_ANNOYED_COLOR
          !byte 0 ;dummy
          !byte 10 ;player
          !byte 2 ;bat diagonal
          !byte 2 ;bat up down
          !byte 4 ;bat 8
          !byte 2 ;mummy
          !byte 13 ;zombie
          !byte 2 ;bat vanish
          !byte 2 ;spider

Add a little change to the common HitBehaviourHurt routine to increase the annoyance state:

!zone HitBehaviourHurt
HitBehaviourHurt
          inc SPRITE_ANNOYED,x
          ldy SPRITE_ACTIVE,x
          lda TYPE_ANNOYED_COLOR,y
          sta VIC_SPRITE_COLOR,x
          rts

Voila! In a later step we'll add some enemies that change behaviour once they get angry.


step35.zip
