A C64 Game - Step 30

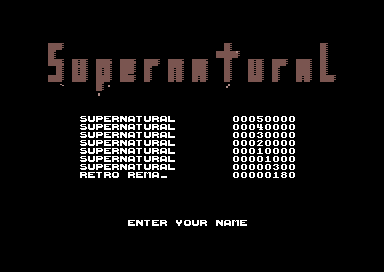

And a new cosmetic refinement, high score name entry. Now the entry is done on a title screen like layout, with a blinking cursor as well.

This requires setting the screen up similar to the title screen (with the raster split between bitmap logo and text mode).



Now it pays off that we had the IRQ initialisation tucked away in a subroutine. Inside the check for highscore routine we sprinkle a few changes. The other parts were mostly in place already (highscore placement, name entry).


First, calling InitTitleIRQ sets up the screen mode. During name entry we also add a blinking cursor. This is for now rather simply implemented as calling EOR (XOR) on the current cursor char.


Highscore entry:

          jsr InitTitleIRQ
          ldy PARAM3
          ldx #0
          stx PARAM3
          jmp .ShowChar

.GetNextChar
          sty PARAM4

          ;blink cursor
          jsr WaitFrame
          lda PARAM3
          clc
          adc #6
          tay
          lda (ZEROPAGE_POINTER_4),y
          eor #123
          sta (ZEROPAGE_POINTER_4),y

          ;restore Y
          ldy PARAM4

          ;use ROM routines, read char
          jsr KERNAL_GETIN
          beq .GetNextChar

          ;return pressed?
          cmp #13
          beq .EnterPressed

          ;DEL pressed?
          cmp #20
          bne .NotDel

          ;DEL pressed
          ldy PARAM4
          ldx PARAM3
          beq .GetNextChar
          dec PARAM3
          dey
          dex
          lda #32
          sta HIGHSCORE_NAME,y
          jmp .ShowChar

.NotDel
          ldy PARAM4

          ;pressed key >= 32 or <‍= 96?
          cmp #32
          bcc .GetNextChar
          cmp #96
          bcs .GetNextChar

          ;max length reached already?
          ldx PARAM3
          cpx #HIGHSCORE_NAME_SIZE
          bcs .GetNextChar

          ;save text
          sta HIGHSCORE_NAME,y
          iny
          inx

.ShowChar
          stx PARAM3
          sty PARAM4

          ;display high scores
          ;x,y pos of name
          lda #6
          sta PARAM1
          lda #10
          sta PARAM2

          lda #<‍HIGHSCORE_NAME
          sta ZEROPAGE_POINTER_1
          lda #>HIGHSCORE_NAME
          sta ZEROPAGE_POINTER_1 + 1
          jsr DisplayText

          ldx PARAM3
          ldy PARAM4
          jmp .GetNextChar

.EnterPressed
          ;fill entry with blanks
          lda #32
          ldx PARAM3
          ldy PARAM4

.FillNextChar
          cpx #HIGHSCORE_NAME_SIZE
          beq .FilledUp

          sta HIGHSCORE_NAME,y
          iny
          inx
          jmp .FillNextChar

.FilledUp
          jsr SaveScores
          jmp TitleScreenWithoutIRQ

At the end of the routine, where we used to jump to the title screen before we now do not need to setup the IRQ any more. Since we're always low on memory we use the power of goto to jump smackdab into the previous TitleScreen routine. This does nothing else but skip the IRQ initialisation call:

!zone TitleScreen
TitleScreen
          jsr InitTitleIRQ

          TitleScreenWithoutIRQ...

Note that this is something that I've done on several occasions. Write sub routines in a way that you can use them for several use cases. There's always a trade off between nice generic reusable code (with a bit more overhead) and specialised routines, which may need to be written more than once.


step30.zip
