A C64 Game - Step 17

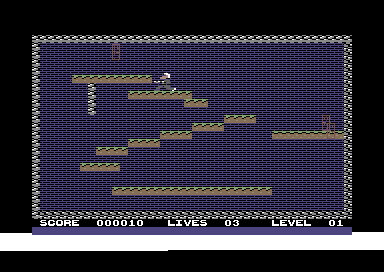

Another rather small step, but visually pleasing. We're enhancing the player sprite with animation and better jump abilities.

All the hard work is added to PlayerControl. On every movement we update the sprite while checking the player states like jumping, recoil, falling, etc. Suddenly things look more interesting ;)

It's basically updating and checking counters during different control parts. SPRITE_ANIM_DELAY is used for controlling animation speed while SPRITE_ANIM_POS is used for the animation frame.



Here are the new parts for walking left:

;animate player
          lda SPRITE_FALLING
          bne .NoAnimLNeeded

          lda PLAYER_JUMP_POS
          bne .NoAnimLNeeded

          inc SPRITE_ANIM_DELAY
          lda SPRITE_ANIM_DELAY
          cmp #8
          bne .NoAnimLNeeded

          lda #0
          sta SPRITE_ANIM_DELAY
          inc SPRITE_ANIM_POS
          lda SPRITE_ANIM_POS
          and #$3
          sta SPRITE_ANIM_POS

.NoAnimLNeeded

The same for right movement:

          ;animate player
          lda SPRITE_FALLING
          bne .NoAnimRNeeded
          lda PLAYER_JUMP_POS
          bne .NoAnimRNeeded

          inc SPRITE_ANIM_DELAY
          lda SPRITE_ANIM_DELAY
          cmp #8
          bne .NoAnimRNeeded

          lda #0
          sta SPRITE_ANIM_DELAY

          inc SPRITE_ANIM_POS
          lda SPRITE_ANIM_POS
          and #$3
          sta SPRITE_ANIM_POS

.NoAnimRNeeded

And all the missing animation for jumping, falling, recoil and combined states. Note that the sprites are arranged in right/left pairs, so that adding SPRITE_DIRECTION (0 = facing right, 1 = facing left) to the sprite frame results in the proper sprite.

          ;update player animation
          lda SPRITE_FALLING
          bne .AnimFalling

          lda PLAYER_JUMP_POS
          bne .AnimJumping

          ;is player shooting?
          lda PLAYER_SHOT_PAUSE
          beq .AnimNoRecoil

          ;recoil anim
          lda SPRITE_ANIM_POS
          asl
          clc
          adc SPRITE_DIRECTION
          adc #SPRITE_PLAYER_WALK_R_1
          adc #8
          sta SPRITE_POINTER_BASE
          rts

.AnimNoRecoil
          lda SPRITE_ANIM_POS
          asl
          clc
          adc SPRITE_DIRECTION
          adc #SPRITE_PLAYER_WALK_R_1
          sta SPRITE_POINTER_BASE
          rts

.AnimFalling
          lda PLAYER_SHOT_PAUSE
          bne .AnimFallingNoRecoil
          lda #SPRITE_PLAYER_FALL_R
          clc
          adc SPRITE_DIRECTION
          sta SPRITE_POINTER_BASE
          rts

.AnimFallingNoRecoil
          lda #SPRITE_PLAYER_FALL_RECOIL_R
          clc
          adc SPRITE_DIRECTION
          sta SPRITE_POINTER_BASE
          rts

.AnimJumping
          lda PLAYER_SHOT_PAUSE
          bne .AnimJumpingNoRecoil

          lda #SPRITE_PLAYER_JUMP_R
          clc
          adc SPRITE_DIRECTION
          sta SPRITE_POINTER_BASE
          rts

.AnimJumpingNoRecoil
          lda #SPRITE_PLAYER_JUMP_RECOIL_R
          clc
          adc SPRITE_DIRECTION
          sta SPRITE_POINTER_BASE
          rts

step17.zip
